Fluorosilicone Gasket
Molded fluorosilicone gasket, Molded fluorosilicone seal parts, cutting fluorosilicone gaskets. Contact us for your need fluorosilicone products
Content

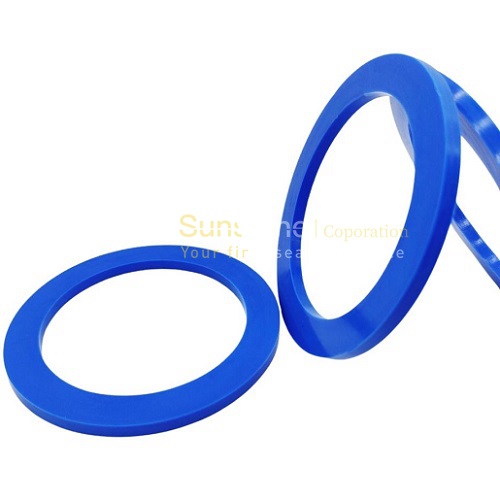

Just what is Fluorosilicone Gasket?
Fluorosilicone gasket is made up of high quality fluorosilicone element with high quality, fluorosilicone gasket has got fantastic number of resistance and compound compatibility properties like excellent mechanised properties along with effectiveness against organic and natural solvents, petroleum structured substance, oils, acidity, and alkaline chemical. So it is an ideal gasket seal in medical device, aerospace, vehicle market sectors program.Fluorosilicone rubber also called FVMQ or fluorosilicone elastomer. We can produce as well as offer premium quality and enormous amount of fluorosilicone gasket in a short time. Any specifications is often manufactured as customers' require.
Benefits associated with Fluorosilicone Gasket
Fluorosilicone gasket features high along with low temperatures amount of resistance while offering outstanding mobility and greatest effectiveness against compression established Fluorosilicone rubberized gasket also offers weatherability and resistance to growing older and sunshine, excellent potential to deal with UV and ozone and ideal resistance to powers, fragrant and chlorinated chemicals, oxidizing chemical compounds, pet and veggie skin oils. It is perfect for extented immersion in gasoline, oils, solvent and hostile fluid.Application of Fluorosilicone Gasket
Fluorosilicone rubber gasket is an ideal decision where need free of moisture warmth opposition. And can be used in stressful applications in which the extreme support temperatures will be required along with resistance to powers, coolants and fats, semiconductor ashing devices, aerospace industry where energizes, coolants and natural oils may be provide. It really is excellent to be utilized in gasoline methods, gasoline Injectors, fuel pumping systems and gas tank Seals.The Propertie of Fluorosilicone Gasket
The hardness shore A of the fluorosilicone rubber gasket might be from 35 shore A to 80 Shore A. The density of fluorosilicone silicone gasket is around 1.2-1.45 g/cm³. Fluorosilicone rubber gasket temperature range: -60 to 230℃.What is the Difference Between Silicone and Fluorosilicone?
The difference between silicone and fvmq fluorosilicone is that FVMQ fluorosilicone rubber reveal numerous commonalities with silicon. It maintains almost each of the features of VMQ.Fluorosilicone rubber differentiates itself from silicone due to its additional advantageous attributes similarly to fluoro elastomer (FKM, FPM, Viton). Its capacity to gas resistance, solvent opposition, compound amount of resistance, and great gas level of resistance and solvent resistance are increased. But fluorosilicone has reduced atmosphere resistance than everyday silicone.
Data Sheet of High Rebound Resilience and Low Compression Set Fluorosilicone Rubber Compounds
|
Testing Item |
Testing Method | F2030 | F2040 | F2050 | F2060 | F2070 | F2080 |
| Color | - |
Blue |
Blue |
Blue |
Blue |
Blue |
Blue |
| Hardness (Shore A) | ASTM D2240 | 30 | 40 | 50 | 60 | 70 | 80 |
| Tensile Strength (Mpa) | ASTM D412 | 9.7 | 10.5 | 10.5 | 11 | 10.2 | 8.8 |
| Elongation at break (100%) | ASTM D412 | 420 | 415 | 350 | 330 | 270 | 210 |
| Tear Strength (KN/m) Die B | ASTM D624 | 16 | 17.5 | 17.3 | 18 | 18 | 17.2 |
| Compression Set % (177°C @22 Hrs) | ASTM D395 | 6 | 6.1 | 6.1 | 6.3 | 6.7 | 6.8 |
| Volume Change % (23°C@72 Hrs Fuel C) | ASTM D471 | 17 | 16 | 16 | 17 | 17.1 | 16.8 |
|
Elongation Change % (23°C@72 Hrs Fuel C) |
ASTM D471 | -20 | -21 | -20 | -21 | -22 | -21 |
